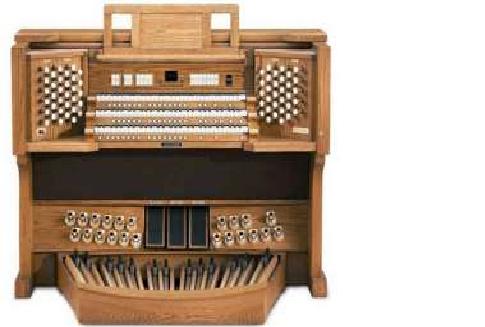

Unico 500

UNICO 500, with its 3 manuals, 56 voices, drawstop arrangement and luxury cabinet, offers the perfect environment to experience the amazing capabilities of Physis.

Open Diapason 8'
Gedackt 8'
Dulciana 8'
Unda Maris 8'
Gemshorn 4'
Lieblich Flute 4'
Flageolet 2'
Larigot 1 1/3'
Cymbal III
Clarinet 8'
Tuba 8'
Tuba Mirabilis 8'
Swell to Choir
Double Diapason 16'
Open Diapason I 8'
Open Diapason II 8'
Claribel Flute 8'
Stopped Diapason 8'
Principal 4'
Harmonic Flute 4'
Twelfth 2 2/3'
Fifteenth 2'
Grand Cornet V
Mixture IV
Sharp Mixture III
Double Trumpet 16'
Trumpet 8'
Clarion 4'
Swell to Great
Choir to Great
Bourdon 16'
Geigen Diapason 8'
Chimney Flute 8'
Lieblich Gedackt 8'
Echo Gamba 8'
Vox Angelica 8'
Geigen Principal 4'
Wald Flute 4'
Nasard 2 2/3'
Fifteenth 2'
Tierce 1 3/5'
Mixture IV
Contra Fagotto 16'
Cornopean 8'
Oboe 8'
Vox Humana 8'
Clarion 4'
Double Open Wood 32'
Open Wood 16'
Open Metal 16'
Bourdon 16'
Principal 8'
Bass Flute 8'
Choral Bass 4'
Mixture IV
Contra Bombarde 32'
Trombone 16'
Basson 16'
Trumpet 8'
Great to Pedal
Swell to Pedal
Choir to Pedal

Keyboards 3 x 61 notes "tracker touch" keyboards, with velocity control for MIDI and Orchestra sections. Optional with wooden keys
Pedalboard 32 notes straight, straight concave, radiating concave
Stop Type Wooden Drawknob
Audio Amplifiers 6 x 60 Watt + 1 x 100 Watt, 7 channels internal amplification system
Speakers 13
Expression Pedals 2 Wooden Pedal
Crescendo Pedal Wooden Pedal 16 step programmable

Pedal 12
Choir 12
Great 15
Swell 17
Total Speaking Stops 56 + 7 Orch. Hundreds voices in the internal sound bank
Sound Styles 4 Preset + 4 User. Hundreds Sound Styles can be loaded and/or stored from/to internal memory and Pen Drive
Alternative Voices Selectable additional sound for each Stop
Orchestra Voices Selectable additional sound for each Stop

General Pistons 10
Divisional Pistons 6
Memory Bank 16
Memory Segments 6 (A,B,C,D,E,F)
Total Memories 960 General, 3840 Divisional, tens of thousands with Pen Drive
Piston Sequencer Prev - Next Pistons and Toe Studs
Return to Handset Registration Individual HR for General and Divisional Pistons
Toe Studs 22
Console On - Ext. Out Speakers On Can be programmed as Main Out On and Antiphonal On
Reed Cancel - Mixture Cancel Yes
Automatic Pedal Yes
Enclosed piston Yes
Couplers 6 With Stops, Pistons and Toe Studs
Transposer -6/+5
General Volume - Reverb Volume With Rotary Potentiometers
Divisional Midi Enable Yes
Organ Solo Piston Solo Coupler
Midi Solo Piston Solo on Midi Out
Orchestra and Midi Sustain With Expression Pedal Switch
Pen Drive Mass Storage Usual Usb Pen Drive can be used as Mass Storage
Key ON/OFF Power Switch Yes
Sequencer Remote Control Optional Radio no directive 50 mt distance Remote Control with built in 2x16 display

DISPLAY 128 x 64 dots Graphic with Backlight
Edit Voice Parameters Stop by stop adjustable voice parameters
Divisional Volume Separate for each Division
Tremulant 3 Separately for each manuals Depth and Speed adjustable
Reverberation 8 Types
Ensemble Effect Adjustable
Air Pressure Effect Proportional to the active Voices
Tracker Keyboard Effect Yes
Historic Temperaments Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975, Meantone, Meantone pure minor third, Zarlino, Sauveur I, Sauveur II, Barca, Rameau, Pythagorean; each with programmable "Tonic" Key Note
Choir/Great Keyboards Inversion Yes
Piston Combine Great/Pedal Divisional Piston Combine
Output Router Stop by stop adjustable Windchest layout
External Out Volume Control 13 (21) indipendent out volume control
External Out 5 Band Equalizer 13 (21) indipendent out 5 Band Equalizer
Internal Ampl. 5 Band Equalizer Yes
Midi Programmable Tx/Rx Midi Ch., Tx/Rx Midi Filter, Send PG, Keyb. Midi Velocity: progammables
Sequencer Interactive Song Sequencer with Overdubbing function
Demo Songs Yes
File Management Copy, Load, Save, Rename, Delete etc. under Linux Operating System
Lock Organ With Password

Midi In, Out, Thru Yes
Stereo Headphone Out Yes
Stereo Aux In Yes
Mic In With Gain Control
Multiple Line Out 13, 21 with Output Expansion Board
USB to PC (For Viscount Organ Editor) For finest finishing and personalization like Stop by Stop, Note by Note Volume and Pitch Regulation, Stop disposition, Internal and External Routing, etc.
USB for Pen Drive Yes

Width x Height x Depth with Pedalb. cm 178x131.5x117
Width x Height x Depth without Pedalb. cm 178x131.5x78
Description Elegant Wooden Console Moldings, Elegant Wooden Lighted Music Rack, Wooden Roll Top with Key-Lock, Bench with Music Storage Shelf
Weight kg 292
