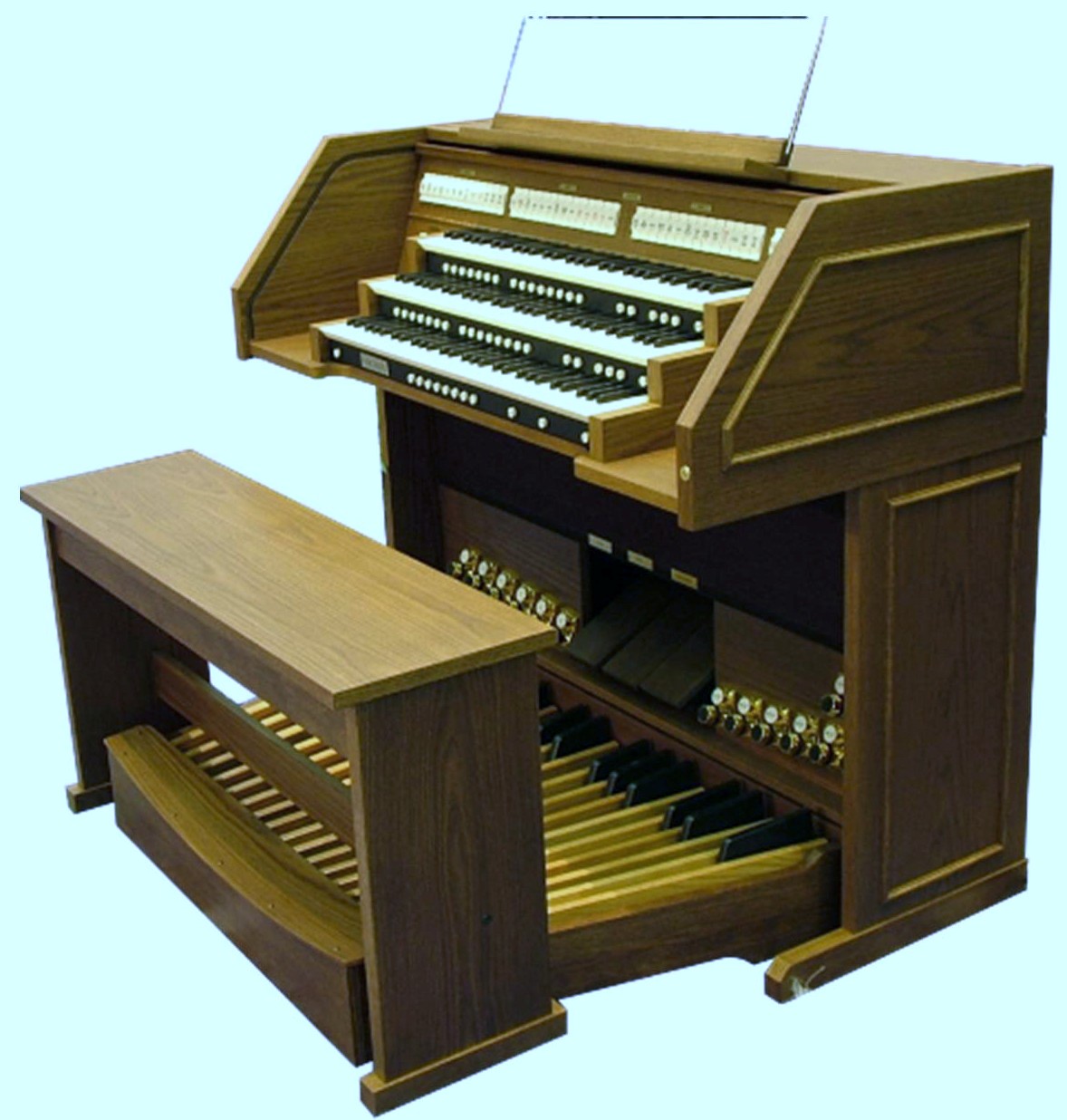

Vivace 90
The Vivace 90 is an ideal organ for the student, Chapel,
or a Church
Vivace 90 - Vivace 90 Deluxe
“Specifications”
Keyboards 3 x 61 notes
Pedalboard, 32 notes radiating, concave Standard
Expression Pedals - Choir-Swell-Crescendo Pedal
Toe Studs -
Vivace 90- - - - - Vivace 90 Deluxe
GT/PD—SW/PD - - - GT/PD—SW/PD—
CHR/PD—SW/GT - - -CHR/PD—SW/GT—
CHR/GT—SW/CHR- - - CHR/GT—SW/CHR
PLEN-REED-TUTTI - - - PLEN-REED-TUTTI
Deluxe 90 (all the above + General Pistons 1-6)
Stops 46 (42 + 4 orchestral)
Total Voice Library 150
Voice Styles 8 (4 preset + 4 user)
Orchestral voices 12
General Pistons 6
Divisional Pistons 6 x 4 = 24
Memory Banks 8
Controls Set—Cancel—AP— Tutti—SWS—HR
Piston Sequencer Yes
Couplers 6
Transposer +5/-6
Divisional Midi Enable Yes
General & Reverb Volume Controls Yes
Display Graphic 128x64 dots
Divisional Volume Controls
Pedal—Great—Swell— Choir
Tremulant Depth/Speed adjustable for Great, Swell, Choir
Reverberation 8 Types
Ensemble Adjustable
FEATURE DESCRIPTION
Temperament 6 Types
Keyboards Inversion Yes
Keyboards MIDI—Velocity Programmable
Piston Combine GT/PD Yes
5 Band Equalizer Yes
Output Router Yes
ProgrammableMIDI Yes
Demo Songs Yes
Pistons & Setting Organ Lock Password Protected
Internal Amplification 3 x 70w = 210w
Internal Speakers 2 x Tweeter + 2 Full
Range + 1 Woofer
MIDI In, Out, Thru Yes
Stereo Headphone Output Yes
Stereo Aux In Yes
Stereo Line Out Yes
Double Stereo Line Out Programmable
Reverb Stereo Line Out Programmable
Stereo Loudspeaker Out Optional
Dimensions (DxWxH) 27.2” x 56.3” x 48.8”
Finish Vivace 90 Simulated Dark Oak
Finish Vivace 90 Dlx Real Wood Cabinets OAK—MED—LTO
STOP LIST SWELL DIVISION
Bourdon 16’
Diapason 8’—Vox Humana 8’
Rohr Flute 8’—Concert Flute 8’
Gamba 8’
Celeste 8’
Prestant 4’
Open Flute 4’—Melodia 4’
Doublette 2’—Flautino 2’
Mixture
Fagotto 16’—Regal 16’
Trumpet 8’
Oboe 8’—Cor Anglais 8’
Orchestral Celesta (or custom voice)
GREAT DIVISION
Violone 16’—Quintaton 16’
Open Diapason 8’
Bourdon 8’
Gemshorn 8’-Flute Traverse 8’
Unda Maris 8’
Octave 4’
Twelfth 2-2/3—Cornet
Fifteenth 2’—Wald Flute 2’
Mixture—Larigot 1-1/3
Trumpet 8’—Oboe Horn 8’
Orchestral Chimes (or custom voice)
CHOIR DIVISION
Hohl Flute 8’—Gedeckt 8’
Dulciana 8’—Quintaton 8’
Gemshorn 4’—Flute 4’
Nazard 2-2/3’
Piccolo 2’—Principal 2’
Tierce 1-3/5’
Mixture—Sifflet 1’—Vox Humana 8’
Cromorne 8’—Clarinet 8’
Orchestral Harp (or custom voice)
PEDAL DIVISION
Contra Violone 32’
Contra Bass 16’-Principal 16’
Sub Bass 16’
Violone 16’—Quintaton 16’
Octave 8’
Bass Flute 8’
Choral Bass 4’
Schalmei 4’—Mixture—Flute 2’
Bombarde 16’—Fagotto 16’
Trumpet 8’—Dulcian 8’
Orchestral String (or custom voice)
