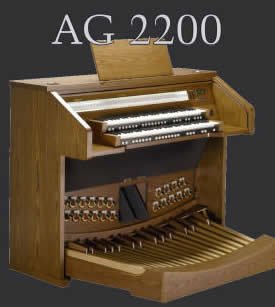

Model AG-2200
from AHLBORN-GALANTI ORGANS
THE NEW BENCHMARK in Electronic Organs
The Electronic Organ for Pipe Organ People™
34 speaking stops programmable from a selection of
254 independently voiceable stops
powered by DRAKE™ technology
5 interactive stop lists™ - Programmable Channeling Memories - 3-D Chamber
Layout™
Solo Coupler, Sub & Super Couplers, 8 audio outputs with 5 band digital
EQ on each output pair
An elegant console with deluxe bench including music storage compartment
Wooden pedal sharps highlight the AGO pedal board
Powerful DRAKE™ Technology (DSP-RISC
ADVANCED KEYBOARD ENGINE) with
Advanced Sampled Wave Processing®
34 Stops- 254 Independently Voiceable Stops available in total
Interactive Stop Lists™(5 - one original and 4 User Programmable)
Selectable On-Board Additional Sounds for each Division
Wooden Roll Top with Key-Lock
Deluxe Bench with Music Storage Shelf
Lighted Pedalboard
Wooden Pedal Sharps
Velocity Sensitive Tracker Touch Keyboards
12 General Pistons, 6 Divisional Pistons and 40 Memory Levels
Piston Sequencer, 500 positions
Pistons Coupled
Return to Handset Registration
Programmable Tutti (5 - one original and one for each Interactive Stop ListTM)
Memory Lock
Lighted Toe Stud Pistons
Tracker Touch Control
Manual Assignments
Metronome
Stop by Stop adjustable Windchest Layout
Note by Note, Stop by Stop Regulation
Note by Note Pitch adjustment for Celeste Stops
Adjustable Tremulants for Great & Swell
Song Sequencer
Disk Drive
Interactive Programmer™ (controls functions by wireless remote control)
Control Panel (controls most of the organ functions)
20 x 4 LCD display
Selectable Historic Temperaments
Programmable Temperaments with 4 memories
12 Step Transposer +/- 6 half steps
Automatic Pedal
Solo Coupler with selectable division, split and octave range
Super and Sub Couplers for Swell Manual
Pipe Stops ON/OFF
Digital Stops ON/OFF
Auto Pipe Tracking™
Internal 3-Channel speaker and amplification system 150w Bass &
2 x 70w mid-range & treble
Independent 5 Band Equalizer for internal speaker system
8 Independent Output Channels (4 pairs)
User Programmable Digital AcousticsTM- Reverb/Effects with four memories
User Programmable Independent 5 band Equalizer on each output pair
3-D Chamber LayoutT™
Main OFF/Antiphonal ON
Stop by Stop Channelling (windchest configuration and
outputs internal and/or external (1 - 4)
Interactive ChannellingT™
(5 - one original and one for each Interactive ChannellingT™ Stop)
Swell Expression Shoe
Adjustable Swell Expression Range
Selectable Expression Mode (mechanical or 8 stage)
Programmable 20 step Crescendo (for each stop list)
Great and Pedal Volume Sliders
Stop by Stop Selectable Expression
Programmable Great and Pedal Enclosed
AUX IN 1 (with level control for use with microphones or other audio device)
AUX IN 2
Computer Serial Port
Headphone Jack
MIDI commands programmable on Pistons (General and Divisional)
Programmable MIDI channels, IN and OUT, for MIDI 1
(MIDI OUT controlled by “MIDI ON” stops)
Programmable MIDI channels, IN and OUT, for MIDI 2
Programmable PIPE MIDI Channels for use with POMI
MIDI 1 IN, OUT and Thru
MIDI 2 IN, OUT and Thru
MIDI IN fi lters for MIDI 1 and MIDI 2
MIDI OUT fi lters for MIDI 1 and MIDI 2
MIDI sustain on toe stud
Available in Dark or Light Oak Finish, with Lighted Rocker Tablets
Optional Wooden Keyboards Available
Ten Year Limited Warranty covers parts for ten (10) years as specifi ed
by the Ahlborn-Galanti Warranty Policy
ETL- Approved (meets UL-469 standards)
Complies with part 15 of the FCC rules
Dimensions: (w) 57.1in/145cm, (h) 45.3in/115cm, (d) 26.8in/68cm
Depth with Pedalboard - 41.7in/106cm Console Weight: 293lbs/133Kg
AG2200 STOP LIST
Pedal Stops | Great Stops | Swell Stops | |||
Alternate |
Alternate Great voices |
Alternate Swell voices |
|||
Untersatz 32 | Montre 16 | Bourdon Doux 16 | |||
Contrebasse 32 | Double Open Diapason 16 |
Quintatön 16 | |||
Contra Violone 32 | Quintatön 16 | Gemshorn 16 | |||
Principal 16 | Gemshorn 16 | Gedackt 8 | |||
Principal 16 | Bourdon Doux 16 | Chimney Flute 8 | |||
Principal 16 | Principal 8 | Bourdon 8 | |||
Violone 16 | Principal 8 | Flauto Cavo 8 | |||
Gemshorn 16 | Principal 8 |
Flute Harmonique 8 | |||
Sub Bass 16 | Prinzipal 8 | Doppleflute 8 | |||
Sub Bass 16 | Italian Principal 8 | Traverse Flute 8 | |||
Bourdon 16 | Montre 8 | Stopped flute 8 | |||
Octave 8 | Geigen Principal 8 | Zauberflote 8 | |||
Principal 8 | Diapason 8 | Gedeckt 8 | |||
Violoncello 8 | Open Diapason 8 | Rohrflote 8 | |||
Cello Celeste 8 II | Holzprinzipal 8 | Flute 8 | |||
Bass Flute 8 | Bourdon 8 | Nason Flute 8 | |||
Bourdon 8 | Gedackt 8 | Viole de Gambe 8 | |||
Gambe 8 | Chimney Flute 8 | Viola da Gamba 8 | |||
Choral Bass 4 | Flauto Cavo 8 | Violin Diapason 8 | |||
Super Octave 4 | Stopped Flute 8 | Dulciana 8 | |||
Harmonic Flute 4 | Zauberflote 8 |
Cello 8 | |||
Nachthorn 4 | Flöte 8 | Violoncello 8 | |||
Mixture IV | Nason Flute 8 | Voix Céleste 8 | |||
Mixture V | Flute Harmonique 8 | Viola Céleste 8 | |||
Posaune 16 | Doppleflöte 8 | Violin Céleste 8 | |||
Trombone 16 | Traverse Flute 8 | Unda maris 8 | |||
Basson 16 | Gemshorn 8 | Cello Celeste 8 | |||
Contre Trompette 16 | Gemshorn 8 | Prestant 4 | |||
Bombarde 16 | Gamba 8 | Octave 4 | |||
Bombarde 16 | Cello 8 | Octave 4 | |||
Ophicleide 16 | Dulciana 8 | Octave 4 | |||
Fagotto 16 | Violoncello 8 | Koppelflöte 4 | |||
Dulzian 16 | Cello Celeste II | Flûte Conique 4 | |||
Trumpet 8 | Octave 4 | Orchestral Flute 4 | |||
Trompette 8 | Prestant 4 |
Harmonic Flute 4 | |||
Tromba 8 | Octave 4 | SpitzFlote 4 | |||
Holzdulzian 8 | Octave 4 | Nazard 2 2/3 | |||
Additional Stop Pedal *** |
Orchestral Flute 4 | Quint 2 2/3 | |||
Great to Pedal | Flûte Conique 4 |
Sesquialtera II | |||
Swell to Pedal | Harmonic Flute 4 | Cornet V | |||
Koppelflöte 4 | Octavin 2 | ||||
*** Additional Stop Pedal |
Spitzflöte 4 | Oktave 2 | |||
Contre Bombarde 32 | Super Octave 2 | Octave 2 | |||
Contrebasse 32 | Oktave 2 | Doublette 2 | |||
Trombone 16 | Octave 2 | Piccolo 2 | |||
Basson 16 | Doublette 2 | Blockflöte 2 | |||
Contra Trompette 16 | Fourniture V | Flute a Bec 2 | |||
Bombarde 16 | Mixture IV | Nachthorn 2 | |||
Bombarde 16 | Trumpet 8 | Plein Jeu IV | |||
Ophicleide 16 | Trompette 8 | Plein Jeu IV | |||
Fagotto 16 | Trompette Harmonique 8 | Cymbale IV | |||
Dulzian 16 | Tromba 8 | Cymbale V | |||
Festival Trumpet 8 | Trompete 8 | Basson 16 | |||
Trompette en Chamade 8 | Bombarde 8 |
Hautbois 16 | |||
Tuba 8 | Additional Stop Great *** |
Cornopean 16 | |||
Tuba Mirabilis 8 | Tremulant | Bombarde 16 | |||
Schalmei 4 | Swell to Great | Double Trumpet 16 | |||
Regal 4 | Trompete 16 | ||||
Timpani | ***Additional Stop Great |
Corno di Bassetto 16 | |||
Chimes | Diapason 8 | Musette 16 | |||
Zimbelstern | Open Diapason 8 | Trompette 8 | |||
Montre 8 | Trompette Harmonique 8 | ||||
Quint 2 2/3 | Trumpet 8 |
||||
Nazard 2 2/3 | Tromba 8 | ||||
Piccolo 2 | Trompete 8 | ||||
Nachthorn 2 | Bombarde 8 | ||||
Quint 1 1/3 | Festival Trumpet 8 | ||||
Larigot 1 1/3 | Trompette en Chamade 8 | ||||
Sesquiltera II | Tuba 8 | ||||
Cornet V | Tuba Mirabilis 8 | ||||
Cymbale IV | Additional Stop Swell *** |
||||
Harmonics V | Tremulant | ||||
Cornopean 16 |
Swell to Swell 16 | ||||
Bombarde 16 | Swell to Swell 4 | ||||
Double Trumpet 16 | Swell off Swell | ||||
Clarinetto 8 | |||||
French Horn 8 | ***Additional Stop Swell |
||||
Krummhorn 8 | Geigen Principal 8 | ||||
Cromorne 8 | Principal 8 | ||||
Trumpette en Chamade 8 | Diapason 8 | ||||
Tuba 8 | Flûte Céleste II 8 | ||||
Tuba Mirabilis 8 | Tierce 1 3/5 |
||||
Piccolo Trumpet | Larigot 1 1/3 | ||||
Clairon 4 | Septieme 1 1/7 | ||||
Schalmei 4 | Sifflote 1 | ||||
Chimes | Jeu de Clochette II | ||||
Zimbelstern | Cymbale IV | ||||
Harpsichord | Acuta III | ||||
Harp/Celesta | Cymbale III | ||||
Piano | Harmonics V | ||||
Gospel Organ (jazz) |
Hautbois 8 | ||||
Rhodes Piano | English Horn 8 | ||||
Brass Choir | French Horn 8 | ||||
Orchestral Strings | Clarinet 8 | ||||
Krummhorn 8 | |||||
Cromorne 8 | |||||
Voix Humaine 8 | |||||
Piccolo Trumpet 8 | |||||
Clairon 4 | |||||
Chalumeau 4 | |||||
Schalmei 4 | |||||
Chimes | |||||
Zimbelstern | |||||
Harpsichord | |||||
Harp/Celesta |
|||||
Piano | |||||
Gospel Organ (jazz) | |||||
Rhodes Piano | |||||
Brass Choir | |||||
Orchestral Strings |
Additional Stop Tab Controls
Interactive Channeling™ 2-5
Interactive Stop List™ 2-5
Couplers
Great to Pedal
Swell to Pedal
Swell to Great
Swell to Swell 16
Swell to Swell 4
Swell Off Swell
Additional Controls
Main Off
Antiphonal On
MIDI on Great
MIDI on Swell
MIDI on Pedal
MIDI Sustain
Automatic Pedal
Solo Coupler
Pistons Coupled
Pipe Ranks On/Off
Digital Ranks On/Off
Tutti
Crescendo
Transposer
12 General Pistons
6 Divisional Pistons
40 Memory Levels
