Factotum Maxi


The Factotum Maxi is the natural evolution to the very successful Factotum. The new and completely revised amplification system is of the highest level to guarantee exceptional performance together with the new professional loudspeakers built to our specification. The Factotum Maxi is equipped with a special modular cabinet for easy transportation and use. The compact size of the satellite speakers means they can be positioned easily.


The Factotum Maxi uses a processed amplification system (300 W woofer + 2 x 120W satellites) with stereo crossover and both Jack and SLR connectors. Equipped with an anit-clipping circuit. it guarantees maximum performance with no risk of damage to system components The particular speaker configuration ensures high tone quality together with a wide frequency range (40 Hz ~ 20 KHz), ideal for high level monitoring in live applications and for the diffusion of music through audio video systems.

Technical Specifications

Amplifier Power Output: 400 Watts + 2 x 120 Watts
Distortion: >0.1% - 1 KHz
Input Impedance: 30 K Ohm (balanced) - 15 K Ohm (unbalanced)
Input Sensitivity: 0 dB (0.775 V)
Sensitivity (SPL IW/Im): 95 dB
Max. SPL: 118 dB
Frequency Response: 40 - 20 KHz (-10dB)
Speakers: 12" Woofer, 2 x coaxial 8" + 1"
Structure: Ultralight plywood cabinet in poplar with hardwearing carpet covering. Protective metal grill. Flange for stand, professional handles, integrated transportation system.
Controls: Master, Volume Bass

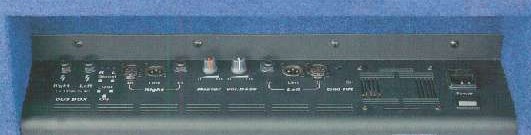

Connectors: 2 x LR Input, - 2 Jack - 2 x LR Link

Total Dimensions: 20 4/5" x 25 3/5" x 14 1/5"
Total Weight: 95 lbs.

MicroMix
Stereo Channel:
Input Sensitivity: -16 dB to +4 dB
Input Impedance: 3 K Ohm
Gain: 20 dB
Band Pass: 0 dB @ 20 KHz, -1.2 dB @ 20 Hz

Level Potentiometer
Crosstalk: >75 dB
Distortion: (THD+N): <0.4%

Mono Channel
Mic. Input Sensitivity: 50 dB to -20 dB
Line Output Sensitivity: -20 dB to +10 dB
Mic. Input Impedance: = 4.4 K Ohm
Line Input Impedance: = 4.7 K Ohm
Tone Controls: Bass 80 Hz +/-12 dB, Middle 80 Hz +/-12 dB, High 8000 Hz +/-12 dB.
Gain: -30 dB
Treble Frequency: +-15 dB @ 6 KHz
Midrange Frequency: +-12 dB @ 1.5 KHz
Bass Frequency: +-15 dB @ 80 Hz
Band Pass: -3 dB @ 20 KHz, -4 dB @ 20 Hz

Level Potentiometer
Crosstalk: >75 dB
Distortion: (THD+N): <0.3%

Master
Output Level L-R: +4 dB (balanced)
Output Leven Send: +4 dB (unbalanced)
Output Level Rec: 0 dB (unbalanced)
Input Sensitivity Return: -4 dB (unbalanced)
Noise (all Pots Level and Master Closed): -126 dB
Noise (Master at Nom. Level): -112 dB
Noise (Master at Nom. Level = I CH.): -108 dB
